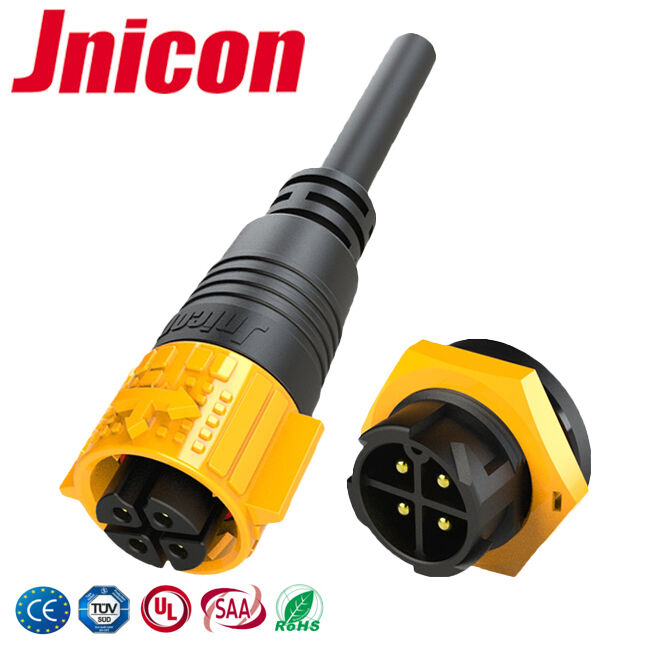

Jnicon IP67 Waterproof Wire Connectors , Outdoor Electric Male Female Plug
Product Features
- IP67 Protection waterproof plug connector
- Overmolded male female plug connector
- 20A current rating for high amps applications.
- Different colors are optional to help you distinguish the output and input .
- Push locking connection method, easy and simple to install and operate.
Waterproof wire connectors could be 2 pin,3pin,4 pin or more, we could do the cable process and solder the cable, one-stop service for you.
Other types connection also available, such as panel mount type, assembly type, field type connection.
OEM and ODM accepted.
Technical Spec as below
| Connector type : |
overmolded power wire connector |
| Connector color: |
Black, blue, yellow |
| Waterproof level: |
IP67 |
| Cable size: |
20AWG-12AWG |
| Cable diameter: |
4.5mm-12mm |
| Contact diameter*No. |
Φ1.0-Φ2.4 |
| Current rating: |
20A |
| Operating voltage (AC.V.rms): |
500V |
| Contact resistance: |
<5mΩ |
| Insulation resistance: |
>500MΩ |
| Durability: |
≥3000 mating and unmating cycles |
| Temperature rating: |
-40°C~105°C |
| Connecting mode: |
Solder type/screw terminal |
| Flame-resistance: |
UL94-V0 |
Application & benefits to waterproof wire connector:
1. Cable length could be customized according to your requirements, it's great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2. Panel socket is available, you could install it on wall or PCB , flange type is optional.
3. Screw locking design, easy connection, convenient install, DIY tools, N for Neutral wire, G for Ground wire, L for live wire.
4. IP67 protection level, moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
5. Long service life to connectors, do not need to replace it always.
