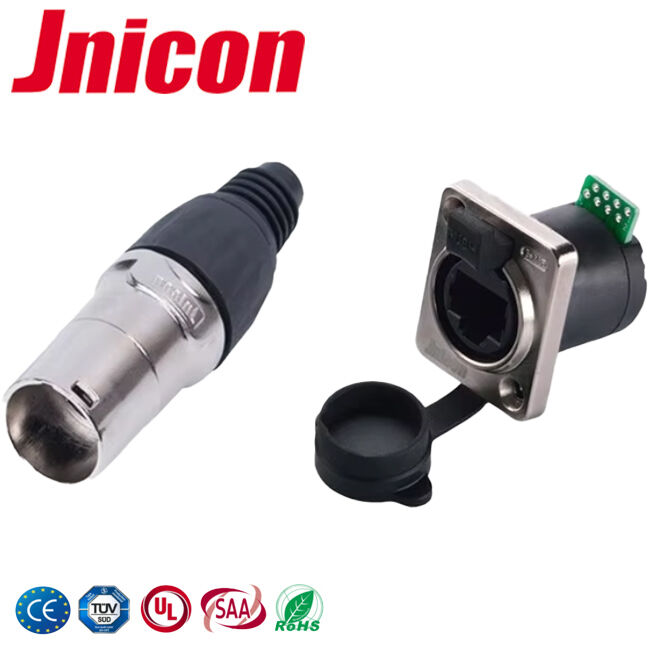

8 Pin Metal House RJ45 Waterproof Connector A/B Type Pin Header Panel Connector
The feature of RJ45 Socket Plug Waterproof Connectors A/B Type:
• According to the standard conforms to D grade or CAT3e, compatible with CAT5e.
• The withstanding voltage of IP65 RJ45 waterproof connector are 500V.
• Bayonet locking style, Good sealing. Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
• Shielding system - high frequency noise immunity and electromagnetic interference protection.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise
• Waterproof and non-waterproof design, The waterproof rating is IP44(no dust cover) or IP65(with plastic cover), IP44 is used for indoor equipment, IP65 is used for outdoor equipment and with dust cover.
• panel mount connectors, metal housing and locking system are available.
Four types can be choosed:
►straight type dual panel connector
►PCB signal panel connector
►90 degree panel connector
►A/B type pin header panel connector
The specifiction of RJ45 plug socket waterproof connector
| Product Specifications |
| Connecting mode |
plug/unplug Lock connection |
| Protection level |
IP65/IP44 |
| Contact diameter×Qty |
8 Pin |
| Withstand voltage(AC.V)1min |
500V |
| Contact resistance |
<60mΩ |
| Temperature rating |
-40°C~80°C |
| Prevent the combustion level |
UL94-V0 |
| Material |
| Shell&insulated parts |
High performance engineering plastics |
| Hardware metal |
copper alloy |
Feature of RJ45 waterproof connector:
| Mechanical |
| A |
Mating/Unmating force |
Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N |
| B |
Life test |
Mating & Unmating 500 cycles |
| Material |
| A |
Contact Plating |
1u" gold plating |
| B |
Contact material |
Brass (C3604) |
| C |
Housing material |
PA66
|
Product material feature:
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Apply in harsh environment(outdoor and indoor) is still perfect.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• The rugged connection system provides a solution for broadband data transmission in harsh environments.
• The connector does have a crystal head.
Product detail picture
Packing and Delivering
- Packaging Details: 50pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 1000 pcs each model.
- If you have shipping agent please tell me , then we can send it to him / her.
- Delivery Details: sample about 3 working days, products in 7 days after payment.
